Multi-axis robot cable tangles
Are you worried about disconnections?
ROBOTRAX
provides reliable cable protection
and reduces maintenance!
Conventional Wiring Protection

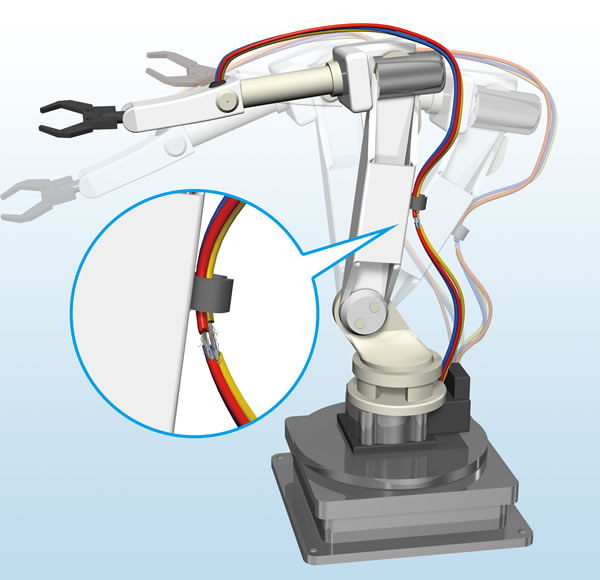

Exposed cables and hoses are at risk of breaking

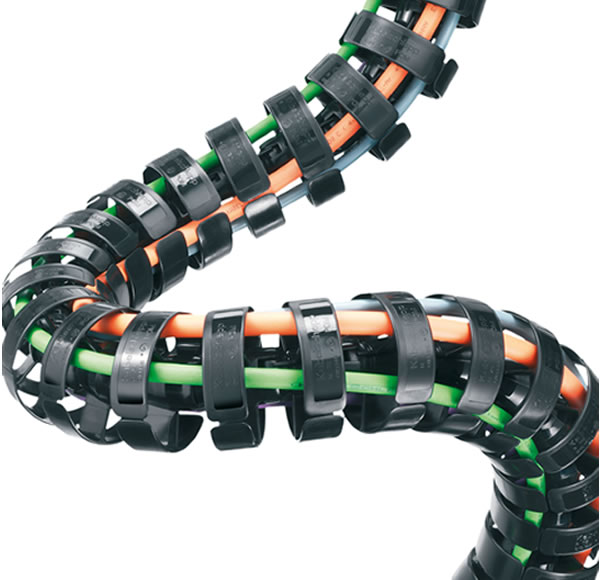

Problem solving with ROBOTRAX
The link's bending-regulating structure protects the cable from excessive stress!
Conventional Wiring Protection

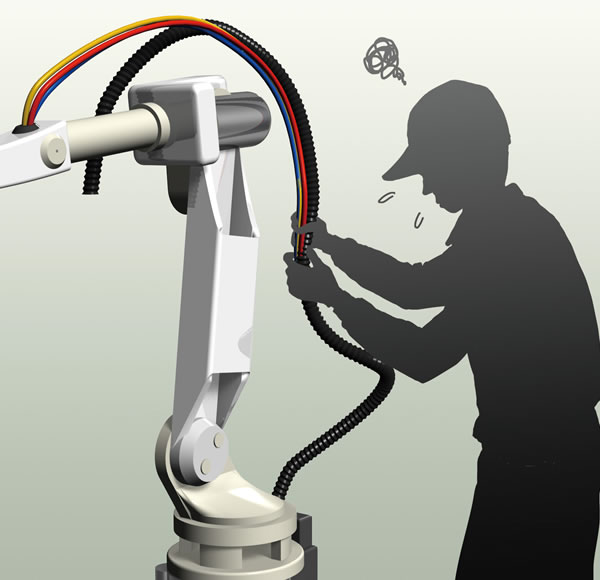

Inserting and replacing cables and hoses takes time.
Problem solving with ROBOTRAX

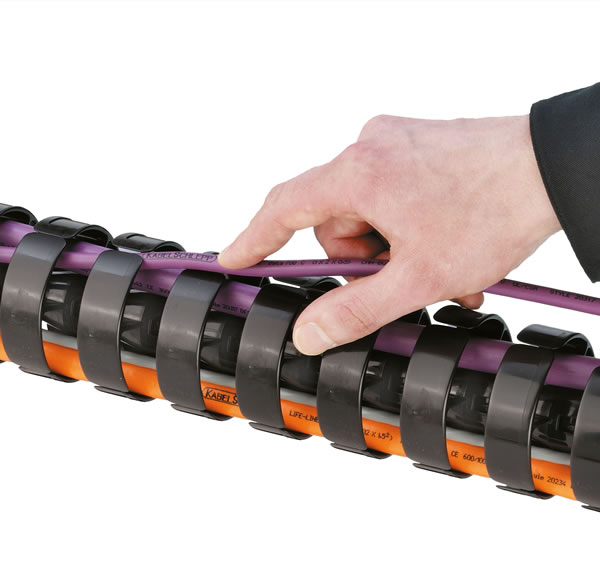

The open structure makes insertion and removal easy. What's more, the cable status can be visually checked!
Conventional Wiring Protection
Cables and hoses can break when they are swung around by the high-speed and complex movements of multi-axis robots.
Problem solving with ROBOTRAX

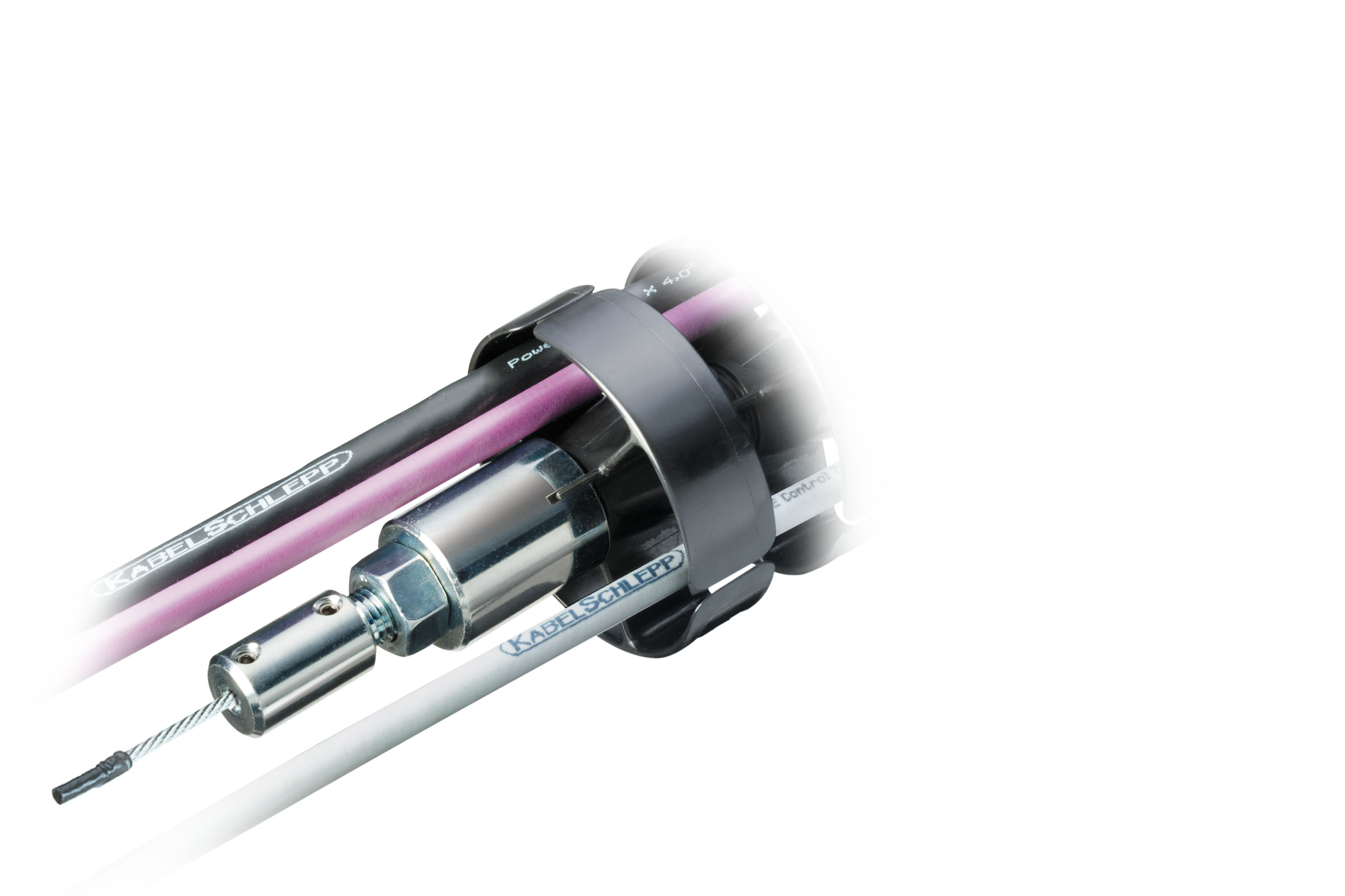

Built-in wire provides high tensile strength. Reliably follows sudden acceleration and deceleration!
Conventional Wiring Protection
Robots are used in harsh environments, which puts strain on cables and hoses.
Problem solving with ROBOTRAX

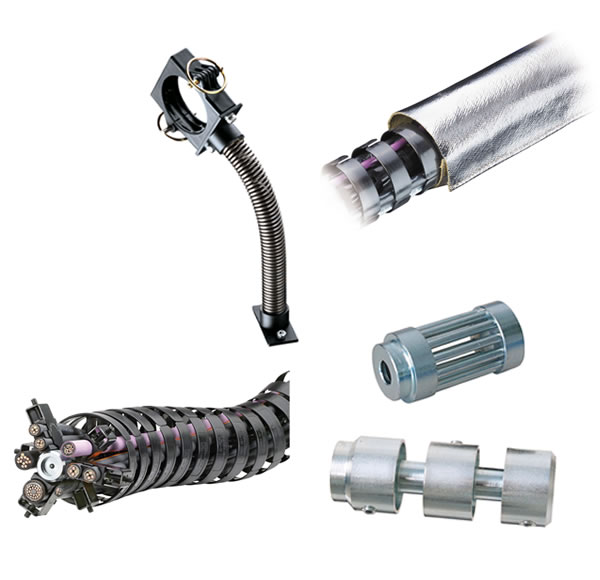

With a wide range of accessories available, it can be used in a variety of environments and for various wiring needs!
Product lineup
series

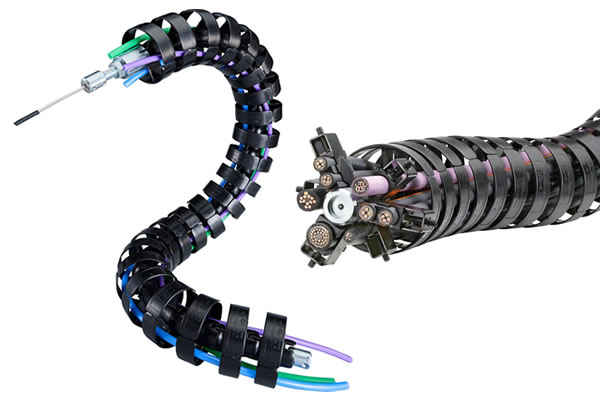

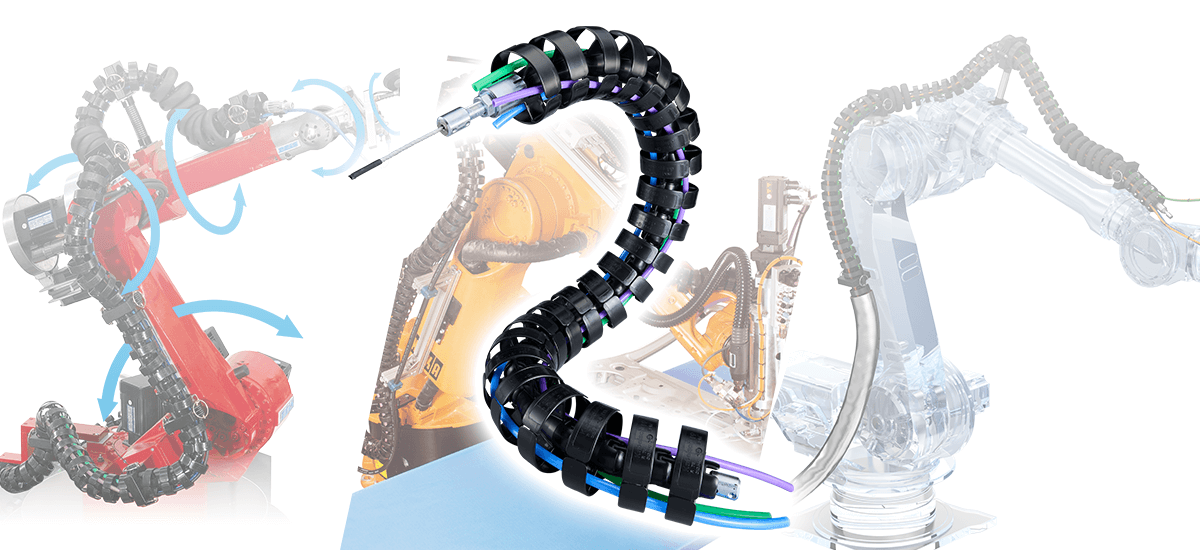

- Plastic Series 3D TKRB Type ROBOTRAX

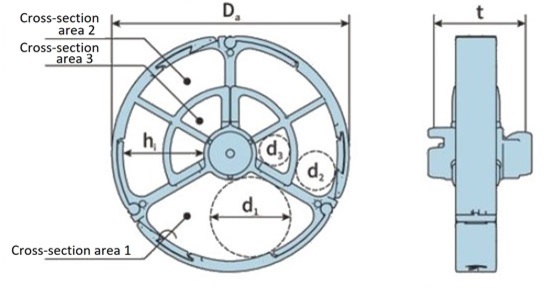

TKRB14H10～TKRB40H31

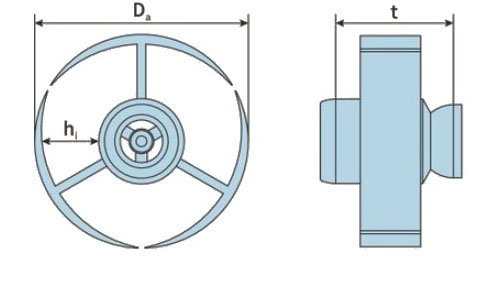

TKRB50H48
*Click to display detailed information.

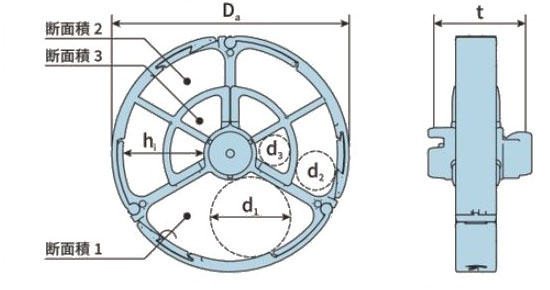

| series | size | Applicable cable/hose outer diameter mm |
bending radius mm |
Allowable torsion angle (per 1m)° |
Da mm |
hi mm |
t mm |
|---|---|---|---|---|---|---|---|
| TKRB Series | TKRB14H10 | 2～7 | 40[53] | ±670 | 31 | 10 | 14.5 |
| TKRB21H10 | 2～8 | 70[75] | ±450 | 40 | 10 | 21.5 | |
| TKRB32H14 | 2～11 | 90[105] | ±300 | 56 | 14 | 32 | |
| TKRB40H22 | 3～18 | 125[140] | ±215 | 75 | 22 | 40 | |
| TKRB40H24 | 3～20 | 130[170] | ±215 | 85 | 24 | 40 | |
| TKRB40H31 | 3～27 | 130[175] | ±215 | 100 | 31 | 40 | |
| TKRB50H48 | ～42 | 125[225] | ±200 | 140 | 48 | 50 |
