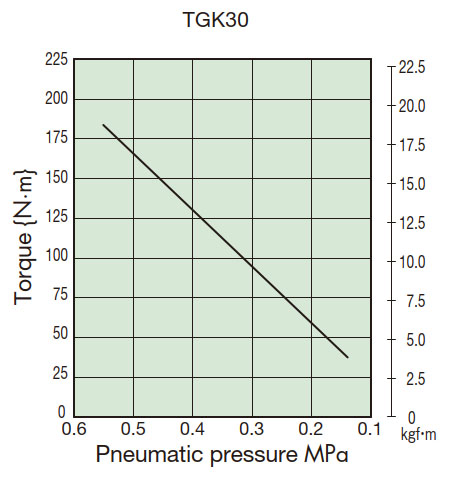

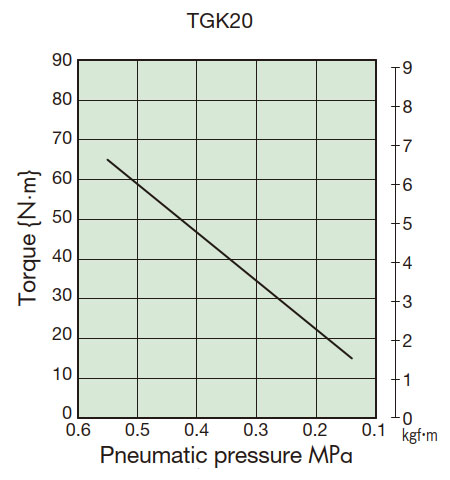

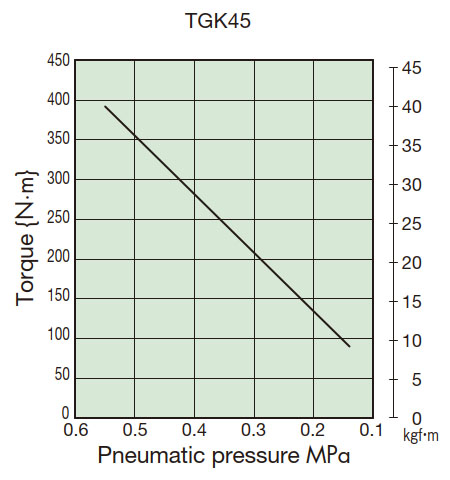

Torque adjustment can be done accurately by referring to the torque correlation diagram, adjusting the air pressure with a regulator (pressure adjuster) to match the required torque, and then sending air into the TGK cylinder.

Additionally, the operating torque can be changed by changing the air pressure even while the machine is running.

Air pressure used: 0.14 to 0.55 MPa

(Note) Make sure that the pressure of the air supply source does not drop below the set pressure.
