technical data Mechanical protector

Shock Guard TGE available

Torque adjustment

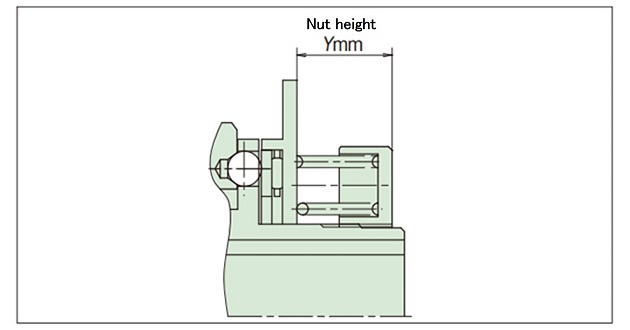

• 1. Read the nut height value corresponding to the required torque from the torque correlation diagram, and tighten the adjustment nut to this value (see diagram below).
  To tighten the adjustment nut, loosen the two set screws, then place a hook wrench (see table below right, sold separately) in the notch on the outer periphery of the adjustment nut and turn it. The torque of the product will not necessarily match the correlation diagram below, so use it as a guide only.


  Hook wrench

  size	Spanner No.
  TGE25	FK-0070
  TGE35	FK-0092
  TGE50	FK-0105

• 2. Once the torque has been determined, write the value on the nameplate so that even if the product is disassembled for maintenance, it can be easily restored to the previous set torque. Furthermore, if stamping alignment marks on the end faces of the nut and hub, you can reproduce the torque more accurately.

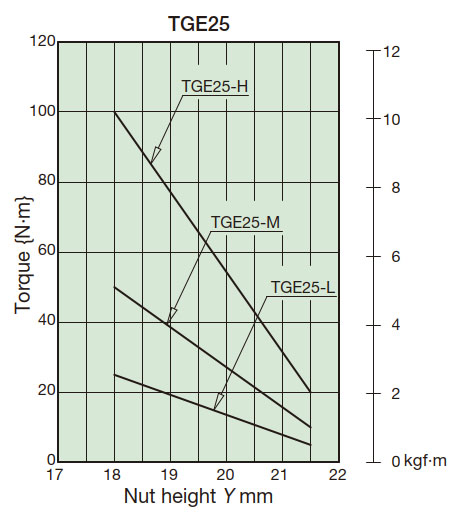

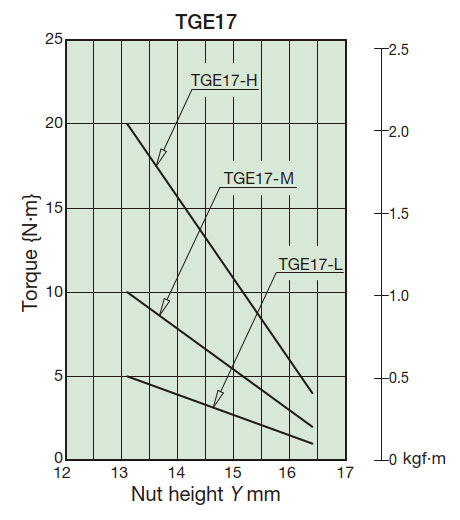

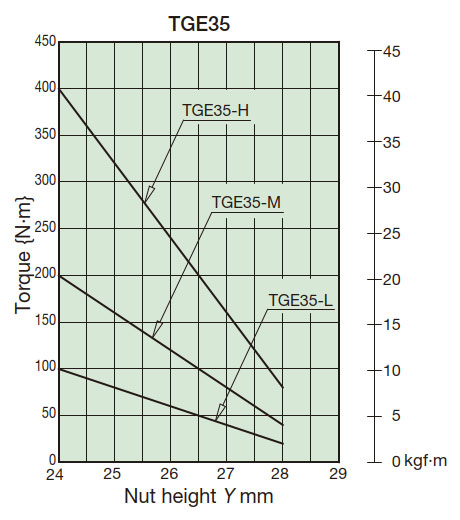

  Torque correlation diagram
