- CNC lathe
-
machine tools

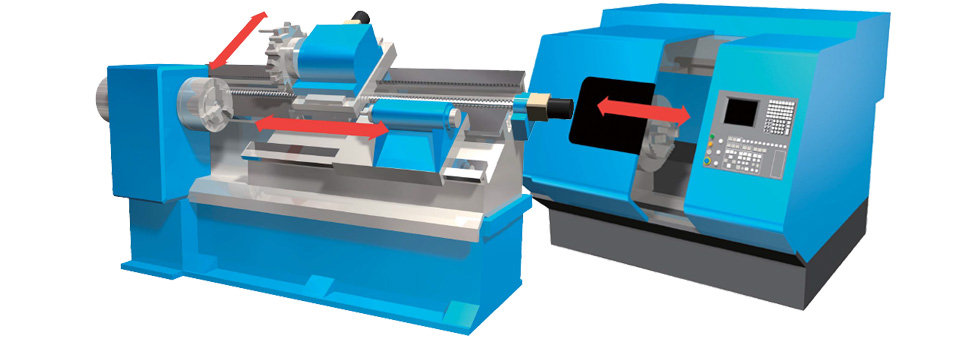

CNC LatheA CNC lathe (Computer Numerical (Controlled) Lathe) is a type of lathe that automatically processes a workpiece by inputting a machining program into a computer numerical control (CNC) device. It can create round-shaped parts by rotating the workpiece and applying pressure while moving the tool back and forth and left and right.
- Machining center
-
machine tools

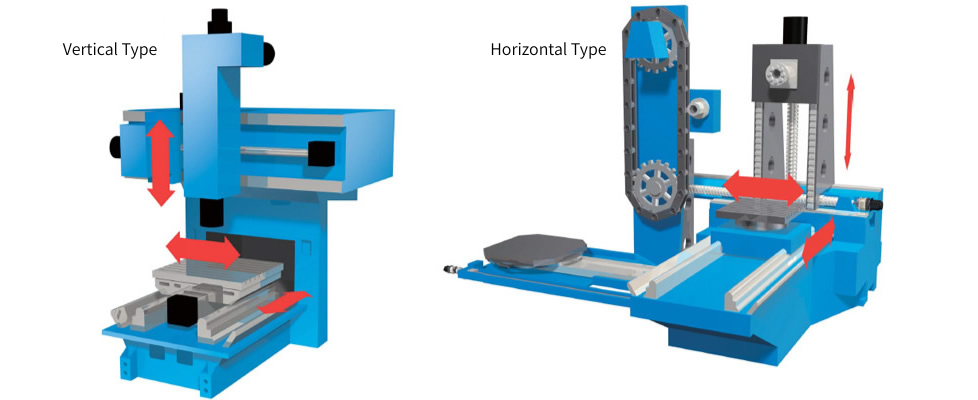

Machining centerA machining center is a numerically controlled machine tool that can perform various operations such as milling, drilling, boring, and tapping without changing the workpiece mounting, and is equipped with a device that automatically brings many different types of tools to the work position.
- Multi-tasking machine
-
machine tools

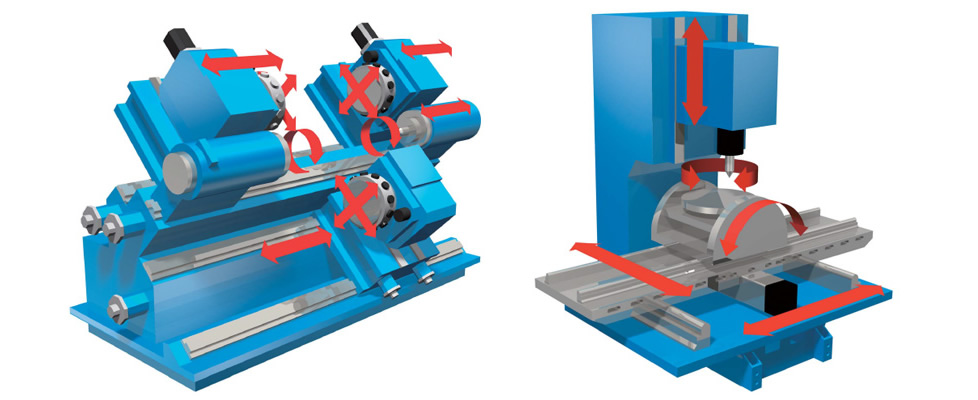

Multi-tasking machineA multi-tasking machine is a machine tool that combines the functions of both a CNC lathe and a machining center. All machining operations can be completed with a single multi-tasking machine, eliminating the need for multiple CNC lathes or machining centers. 5-axis machining centers are also included in this category.
Spindle drive unit - Coupling/ Power-Lock /Oil-resistant belt -(CNC lathe, machining center, multi-tasking machine)
The heart of a machining center: it's where tools are attached and rotated to process the workpiece.
Tsubaki offers a wide range of products that can accommodate three different drive systems: belt drive, direct servo motor drive, and built-in motor drive.
Servo motor direct connection system
For connecting the main shaft and servo motor, Tsubaki couplings (shaft couplings) are the best choice.
Learn more about coupling

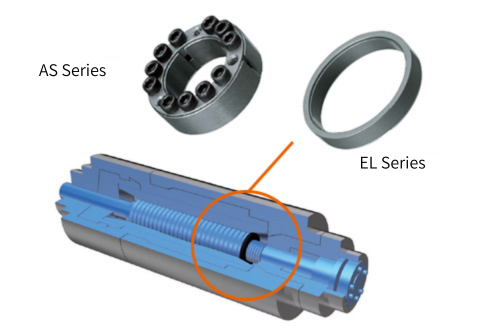

Built-in motor system

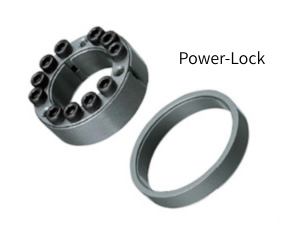

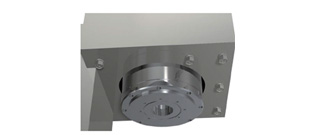

Power-Lock is used for fastening the rotor of built-in spindle motors.
Learn more about Power-Lock

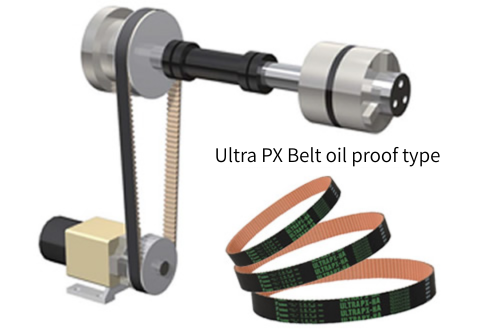

Belt drive system

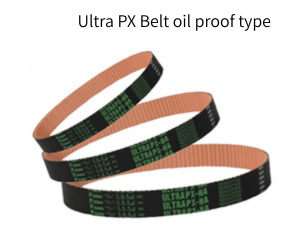

Tsubaki's Ultra PX Belt Synchronous Belts (oil-resistant specification) is a belt based on the high-performance Synchronous Belts" Ultra PX Belt HC Type" with added oil resistance, and has the same power transmission capacity as HC Type.
The main body rubber is made of oil-resistant material. It can be used even in oily environments, and there is virtually no deterioration in the physical properties of the belt.
Learn more about the oil-resistant specifications Ultra PX Belt
Oil-resistant versions are made to order (orders accepted from one unit).

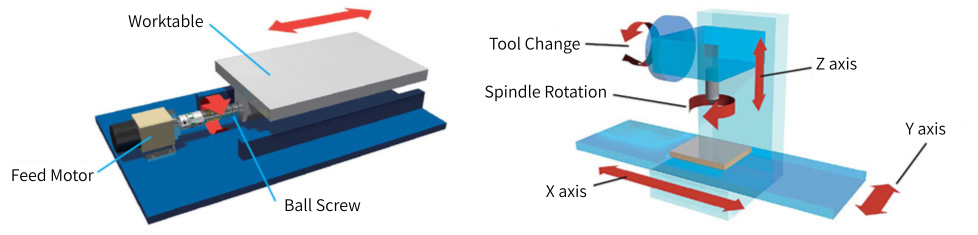

Feed axis mechanism (X-axis, Y-axis) -Cable Carrier (CABLEVEYOR) /coupling -(CNC lathe, machining center, multi-tasking machine)
Feed shaft that provides a feeding motion to the cutting tool used to perform cutting operations on a workpiece.
(X axis, Y axis)
The connection between Ball screw and the servo motor utilizes Cable Carrier (CABLEVEYOR) that reliably support and guide cables and hoses when the equipment is moved.

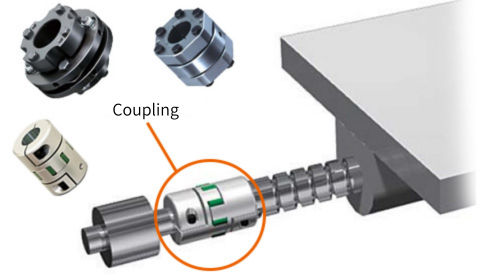

Tsubaki couplings are ideal for connecting Ball screw and servo motors.
Tsubaki couplings are ideal for connecting Ball screw and servo motors.
Learn more about coupling

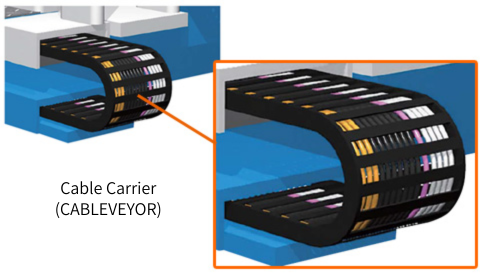

Cable Carrier (CABLEVEYOR) cable and hose support and guidance devices used when moving equipment.
Cable Carrier (CABLEVEYOR) cable and hose support and guidance devices used when moving equipment.
More about Cable Carrier (CABLEVEYOR)

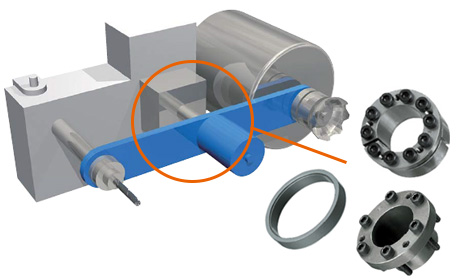

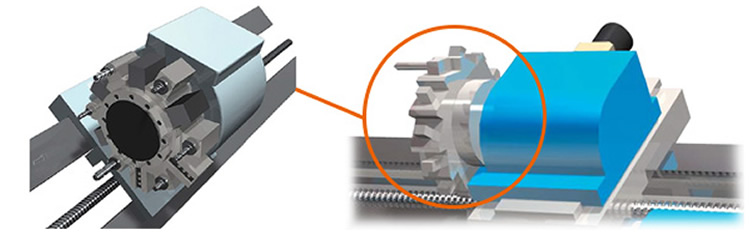

Tool post (turret) -Power-Lock /oil-resistant belt -(CNC lathe, multi-tasking machine)
A tool post with a polygonal turret surface that can mount multiple tools for cutting workpieces and index them to any desired position. For applications requiring precise indexing accuracy, Tsubaki offers Synchronous Belts and Power-Lock to meet your needs.
Learn more about Power-Lock
Learn more about the oil-resistant specifications Ultra PX Belt
ATC System (Automatic Tool Changer) -Power-Lock-(CNC Lathes, Multi-tasking Machines)
Power-Lock is ideal for fastening tool change arms.
Tsubaki has many years of experience and a proven track record in the chain-type ATC system.
Furthermore, for fastening the tool change arm, you can select the optimal Power-Lock from our extensive lineup.
Learn more about Power-Lock

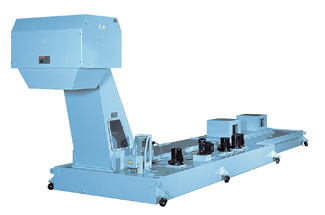

Chip and coolant handling system - Chip conveyor -(CNC lathes, machining centers, multi-tasking machines)
Manufactured and sold by: Tsubakimoto Mayfran Co., Ltd.
A chip conveyor that transports chips.
Tsubaki offers a wide variety of products, including hinge type, scraper type, and push bar type.
The drive unit employs a motor with a gearbox that integrates overload protective device.
We also stock equipment necessary for coolant treatment, such as coolant separators and sludge recovery systems.
Learn more about chip conveyors
For questions about the product, please click here

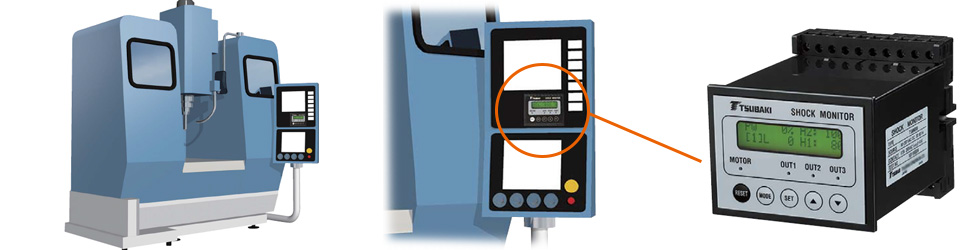

Overload and wear detection -overload protective device Shock Monitor-(CNC lathes, machining centers, multi-tasking machines)
Tsubaki's electric overload protective device, Shock Monitor, quickly detects changes in power values and reliably detects overloads.
By installing overload protective device, it is possible to prevent the occurrence of defective products and deterioration of yield due to tool breakage.
Learn more about Shock Monitor
For questions about the product, please click here
