Major Specifications of Top chain accessories
TPU-USR専用コーナディスク：TPU826USR-CD-R190
[Click to enlarge]

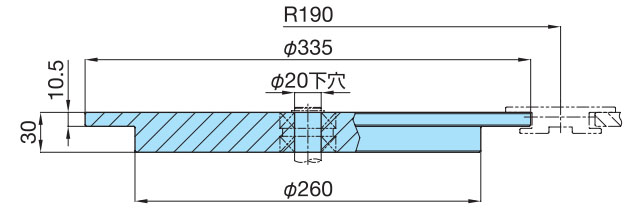

PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
TPU-USR
Major Specifications
| Applicable | 搬送側、帰り側 |
|---|---|
| Model number | TPU826USR-CD-R190 |
| Material | Made from ultra-high molecular weight polyethylene |
| Material Grade | 10-100 |
| Appearance color | white |
| DXF Drawing data | DXF |
| Standard price | Please contact us |
| Delivery | Please contact us |
Note
1. This product is made to order.
2. We can also manufacture bearing-equipped products upon consultation.
