Major Specifications of Top chain accessories

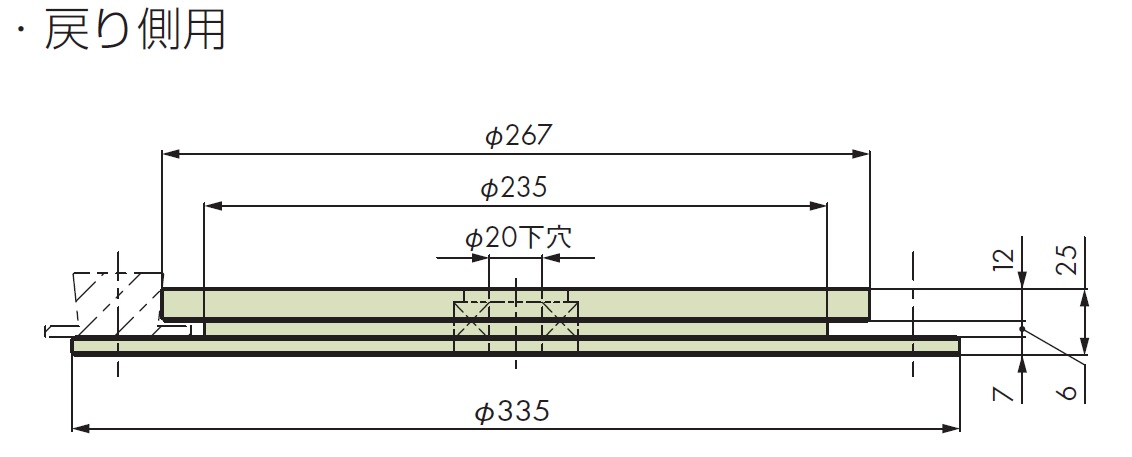

TP-UB36専用ターンディスク：TP-UB36TW-R
[Click to enlarge]
PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
TP-UB36, TP-UB36P
Major Specifications
| Applicable | sender | return-way |
|---|---|---|
| Model number | TP-UB36TW-D | TP-UB36TW-R |
| Material | Made from ultra-high molecular weight polyethylene | |
| Material Grade | 10-100 | |
| Appearance color | white | |
| DXF Drawing data | DXF | DXF |
| Standard price | Please contact us | Please contact us |
| Delivery | Please contact us | Please contact us |
Note
1. This product is made to order.
2. We can also manufacture bearing-equipped products upon consultation.
