1. How to select specifications
The standard Standard Series.
Low Friction / Wear resistant (LF) specifications are often used for transporting containers such as beverages.
Furthermore, if you need good sliding properties to reduce snagging of transported items, we recommend the ultra-Low Friction / Anti-Wear (ALF) specification.
These three specifications are the standard specifications (materials).
For anything other than the standard, you will need to select a high-performance series that suits your application and purpose.
Please refer to the table below for information on how to use the ultra-Low Friction / Anti-Wear (ALF) specification and the standard and Low Friction / Wear resistant (LF) specifications.
| Specification | needs | Purpose |
|---|---|---|
| Standard Series (Gray, White, Blue, Sky Blue) |
Areas where moderate slippage is sufficient (areas where excessive slippage is problematic) |
|
| Low Friction / Anti-Wear (LF) specifications (white, green, brown) |
Areas where Standard Series lack slipperiness |
|
| Ultra-Low Friction / Anti-Wear (ALF) specifications (light blue) |
Areas where greater slipperiness than the current low friction specifications is required, such as conveyors where continuous accumulation occurs and [multiple strand to single strand alignment sections]. Also, measures to prevent slippage when transporting containers, etc. (Currently, even with low-friction specifications, there is insufficient slippage, and slider fluid is used frequently in these areas.) |
|
Industry/Food Sanitation Law Compliance Icon
These are the industries we recommend. When you open the details of each specification, an icon will appear.
Specifications that comply with the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370) are marked with the Food Sanitation Act compliance icon.
Can manufacturing
beverage
tire
Machine parts
logistics
Medicines
Bakery and Food
Battery
Semiconductor and solar panel related
Food Sanitation Act compliant
Note: May not be usable depending on speed, transported items, weight, environment, and application.
If you have any applications or conditions not listed, please contact us.
Specification application table
This is an explanation of the common specifications for Plastic modular chain, Plastic top chain, and Plastic block chain.
| Specification | Specification Code | General-purpose | Reduces the generation of Wear debris | Reduces friction resistance (makes it easier to slip) | Increased friction resistance (less slippery) | Resistant to chemicals (resistant to corrosion) | High-speed driving | Used in high temperature environments | Used in low temperature environments | Use in dry conditions only | Excellent conductivity | Shock resistant | UV resistant | Prevent the growth of fungi | Debris can be detected by metal detection | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Series | Normal | none G,W,B,BL,A | ● | ▲ | ● | |||||||||||
| Low Friction / Wear resistant | LFW | ● | ● | ● | ||||||||||||
| LFG | ● | ● | ● | |||||||||||||
| LFB | ● | ● | ● | |||||||||||||
| Low Friction / Wear resistant | CB | ● | ● | ● | ||||||||||||
| Advanced Low Friction / Wear resistant | ALF | ● | ◎ | |||||||||||||
| low friction | NLF | ● | ● | |||||||||||||
| low friction | WR | ● | ▲ | |||||||||||||
| High-performance series | Heat resistant/high speed | KV150 (dry) | ● | ● | ● | ● | ||||||||||
| KV180 | ● | ● | ● | ● | ||||||||||||
| KV250 | ● | ● | ● | ● | ||||||||||||
| Low Friction / Wear resistant | HG | ◎ | ● | |||||||||||||
| high temperature | HTW | ● | ● | ● | ||||||||||||
| High Speed (Dry) | HS | ● | ● | |||||||||||||
| low temperature | LTW | ● | ||||||||||||||
| Chemical resistance | Y | ● | ● | ● | ||||||||||||
| Super chemical resistant | SY | ◎ | ● | ● | ||||||||||||
| conductive | E | ● | ||||||||||||||
| Shock resistance (dry) |
DIA | ● | ● | ◎ | ||||||||||||
| Shock resistance (Dry & Wet) |
DIY | ● | ● | ● | ||||||||||||
| Antibacterial and antifungal | MWS | ● | ● | ● | ||||||||||||
| Metal detection (dry) |
MPD | ● | ● | ● | ||||||||||||
| Metal detection (Dry & Wet) |
MPW | ● | ||||||||||||||
| medium friction (dry) |
MF | ● | ● | |||||||||||||
| Acid resistance | AR | ● | ||||||||||||||
| UV resistant | UVR | ● | ||||||||||||||
| Special specifications | Heat resistant/<br class="d-block d-lg-none">Radiation resistant/<br class="d-block d-lg-none">Vacuum resistant | PK150 | ● | ● | ||||||||||||
| Low temperature and chemical resistance | UPE | ● | ● | ● | ● | |||||||||||
Note) ◎: Excellent, ●: Good, ▲: Fair
Standard Series [Specification code: None, G, W, B, BL, A]
General-purpose polyacetal used for chain links
Appearance color:

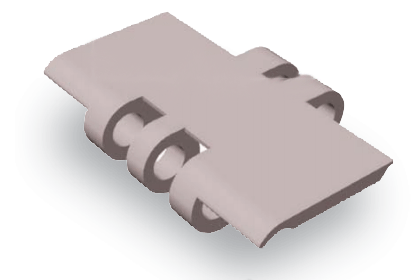

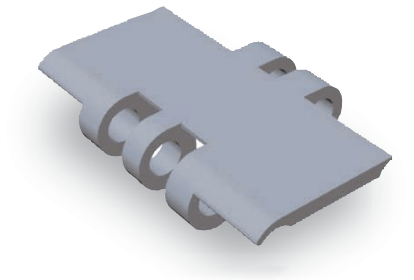

gray

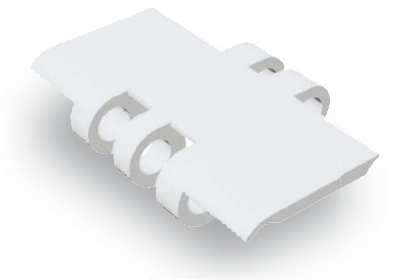

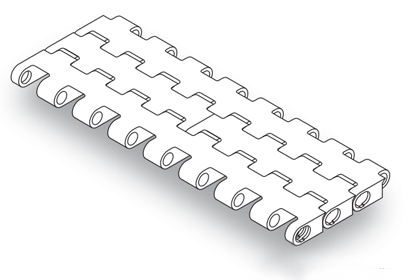

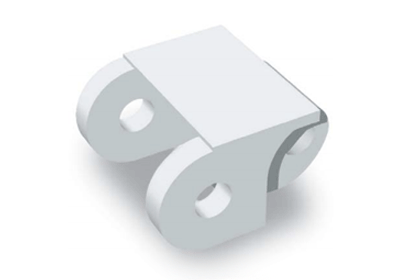

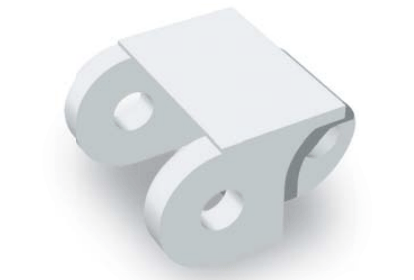

Appearance Color:
white
Appearance Color:

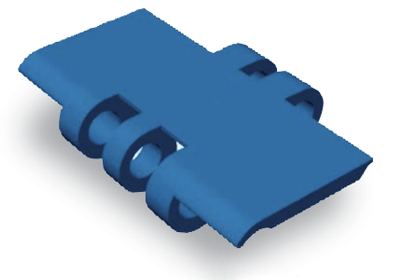

blue

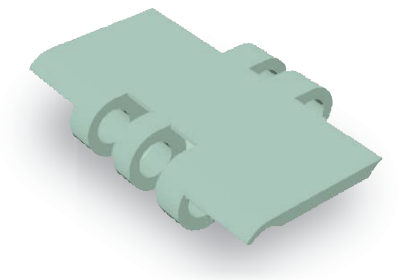

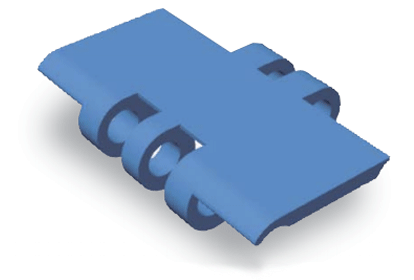

Appearance color: Sky blue
General-purpose type
It is suitable for general use as it uses general-grade polyacetal resin with excellent mechanical properties.
Anti-static
It has an antistatic function that prevents the adhesion of dust and Wear debris caused by static electricity.
(Exterior colors: Gray, Blue, Green, Sky Blue only) Note 2
- Note) 1. Products with the specification code "None", "B", or "G" include those that do not comply with the Food Sanitation Act (Ministry of Health, Labour and Welfare Notification No. 370). For details, please see here. List of non-compliant products under the Food Sanitation Act
- Note 2: Some products have specification codes. Please refer to Product Info for details.
- Note) 3. Please refer to each product page for the appearance color and whether or not it has anti-static function.
- Note) 4. There are some products that are not described as "Standard Series", such as Plastic Roller tables and plastic universal chains.
Low Friction / Wear resistant [Specification code: LF]
Low Friction / Anti-Wear polyacetal chain links

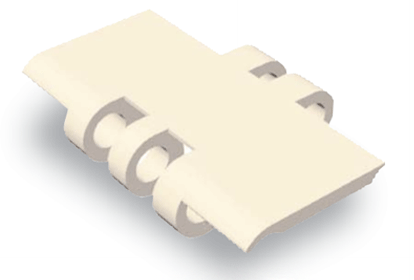

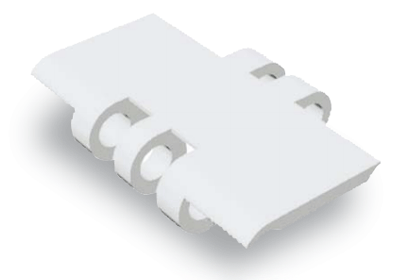

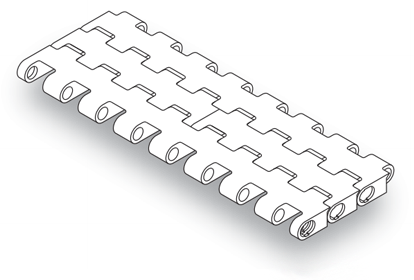

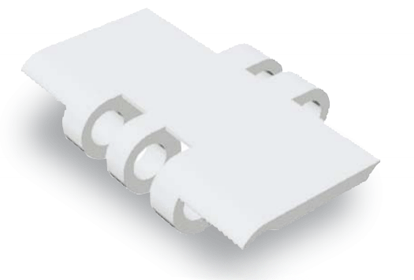

Appearance Color:
White [LFW]

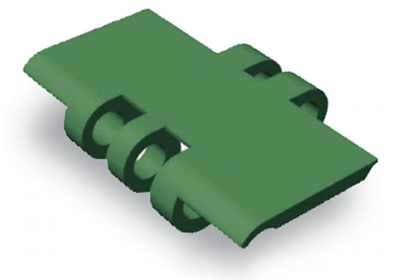

Appearance color:

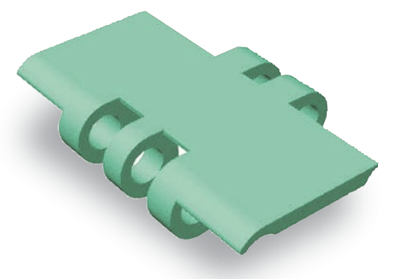

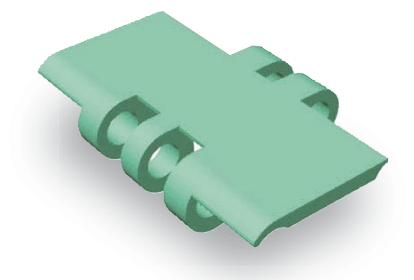

Green [LFG]
Appearance Color:
Brown [LFB]
Purpose
Can be used for a variety of purposes
When the operating conditions are severe (high speed, high tension) and the chain wears out quickly, the chain replacement cycle is short under Standard Series
When the line pressure is high and you particularly want to prevent scratches on the product
Protection of transported items
Reduces line pressure and scratches to the products during accumulation due to its coefficient of friction 14% to 45% lower than compared to Standard series
Long life (compared to Standard Series)
Due to the reduction in chain tension, the chain life is improved by 1.2 to 2 times compared to Standard Series.
Due to the reduction in chain tension, the chain life is improved by 1.2 to 2 times compared to Standard Series.
Smooth branching and collection of transported items
Reduced power requirements
- Note: Products with the specification code "LFB" include those that do not comply with the Food Sanitation Act (Ministry of Health, Labour and Welfare Notification No. 370). For details, please see here. List of non-compliant products under the Food Sanitation Act
Low Friction / Wear resistant [Specification code: CB]
Low Friction / Anti-Wear polyacetal chain links

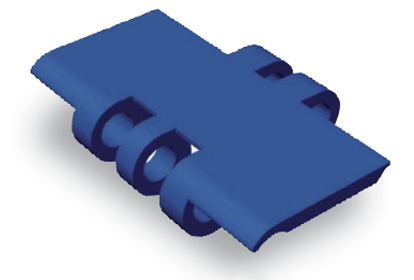

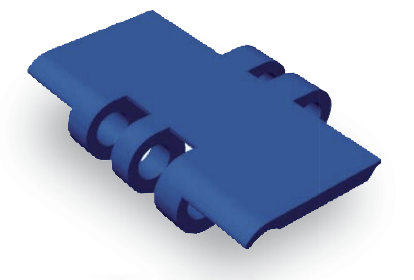

Appearance Color:
Blue [CB]
Purpose
When the line pressure is high and you particularly want to prevent scratches on the product
Protection of transported items
Reduces line pressure and scratches to the products during accumulation due to its lower coefficient of friction compared to Standard series.
Smooth branching and collection of transported items
Reduced power requirements
The applicable chain types are as follows:
WT2515G-M, WT2515-W, WT2515G-W, WT2515F-W, and TTUPM838H models only
- Note: This product contains a silicone-based lubricant, so do not use it in areas where there is a risk of print bleed during the printing process or under conditions where silicone may have an adverse effect.

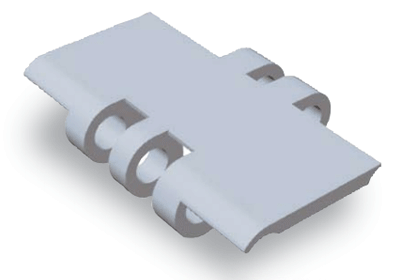

Appearance Color:
Light Blue [ALF]
A process before the packaging machine where lubricants cannot be used Wear debris are unacceptable
Appearance Color:
Light Blue [ALF]
Purpose
- A process before the packaging machine where lubricants cannot be used Wear debris are unacceptable
- Dry lubricated processes in the beverage industry
- Conveyor with accumulation
- Beverage industry, inspection machine/printing conveyor, single filer, and other processes with high chain speeds
Protection of transported items
This is our original material developed by blending a silicone-based lubricant for the purpose of dry conveyance.While maintaining the same friction coefficient as the previous ULF specification, it significantly reduces the amount of Wear debris generated under unlubricated conditions.
Smooth branching and collection of transported items
Reduced power requirements

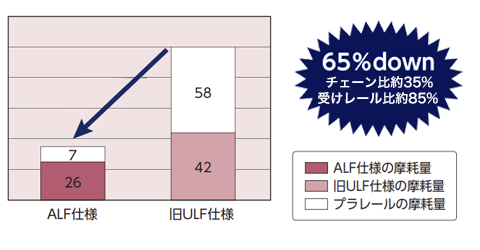

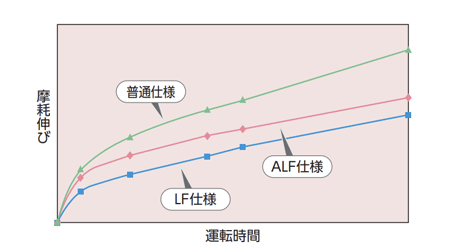

Comparison of wear with the old ULF specification
- *The graph above shows the results of our internal testing. The wear volume of the old ULF specification is set as 100 (standard).
- *ALF specifications reduce the generation of Wear debris, especially for Plastic rail, compared to the old ULF specifications. If you want to further reduce the generation of Wear debris we recommend using Plastic rail Low Friction / Wear resistant (PLF).
- Note) 1. Since it contains a silicone-based lubricant, do not use it in areas where there is a risk of print repelling during the printing process or under conditions where silicone has a negative effect.
- Note 2) Sales of the old ULF specifications were discontinued with orders placed at the end of September 2018.
Low friction specification [Specification code: NLF]
Low-friction polyacetal chain links

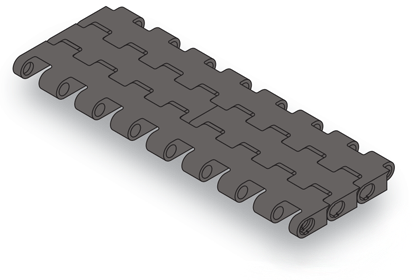

Appearance color:
Dark Gray [NLF]
Purpose
Can be used for a variety of purposes
When the line pressure is high and you particularly want to prevent scratches on the product
Protection of transported items
Reduces line pressure and scratches to the products during accumulation due to its coefficient of friction 10% to 30% lower than compared to Standard series
Smooth branching and collection of transported items
Reduced power requirements
* Allowable tension is the same as Standard Series.
Low friction specification [Specification code: WR]
Corrosion-resistant polyacetal used for chain links
Appearance color:
Dark Green [WR]
Purpose
When using chemicals such as sodium hypochlorite
When the line pressure is high and you particularly want to prevent scratches on the product
Protection of transported items
Reduces line pressure during accumulation due to its coefficient of friction 7% to 28% lower than compared to Standard series Minimize scratching to conveyed products
Corrosion resistance
It has improved corrosion resistance to sodium hypochlorite and other substances, making it suitable for beverage and food conveyors.
Smooth branching and collection of transported items
Reduced power requirements
* Allowable tension is the same as Standard Series.
Heat-resistant and high-speed specifications [Specification code: KV]
Special engineering plastic used for chain links

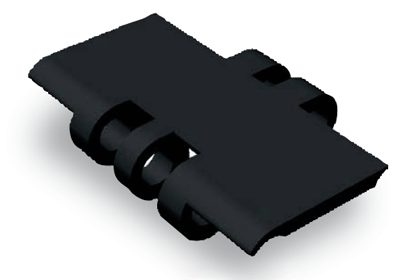

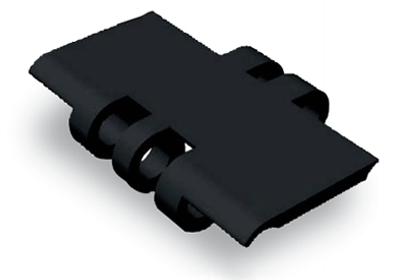

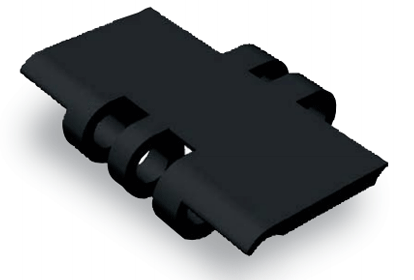

Appearance Color:
Black [KV150, KV180, KV250]
Purpose
- Transporting solar panel lamination processes
- Transporting printed circuit boards after they have come out of the drying oven
- Transport inside the shrink furnace
- Transporting rice cookers
- Conveying at the exit of the bread oven
- Transport in various drying ovens
- Transport during the process of cleaning with hot water and highly concentrated chemicals
- Conveying in the syringe drying process
- High-speed conveying at the seamer exit of beverage and filling capping machines
Maximum ambient temperature
- 150℃ (specification code): KV150
- 180℃ (specification code): KV180
- 250℃ (specification code): KV250
maximum speed
200 m/min (with Plastic top chain)
Chemical resistance
It has excellent resistance to cleaning and disinfecting chemicals.
Conductivity
The surface resistance is low and static electricity is not generated (1x10 6 Ω・cm), making it suitable for preventing dust adhesion and sparks.
Flame retardant
UL standard V-0 class (high flame retardancy class) Note: Excluding KV150
Noise
It is 2 to 3 dB higher (compared to Standard Series).
Applicable chain type examples
BTC6 type, TPU826-T type, RSP40 type, etc.
- Notes: 1. KV150 does not comply with the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370).
- Note) 2. KV150 is for dry conditions only.
- Note 3) Please also refer to the precautions for use for heat-resistant and high-speed (KV) specifications in the catalog.
- Note 4. Operating temperature range: -20 to 150°C (KV150), -20 to 180°C (KV180), -20 to 250°C (KV250)
Low Friction / Wear resistant [Specification code: HG]
Low Friction / Anti-Wear polyacetal chain links
Appearance Color:
Navy Blue [HG]
Purpose
- A process before the packaging machine where lubricants cannot be used Wear debris are unacceptable
- Beverage industry, inspection machine/printing conveyor, single filer, and other processes with high chain speeds
- Dry lubricated processes in the beverage industry
Countermeasures against Wear debris
It has 20% better wear resistance than the Low Friction / Wear resistant (LF) specification, and can be replaced with the Low Friction / Anti-Wear (HG) specification without modifying the conveyor or changing the sprockets. (When replacing the chain, we recommend also replacing the rails. For Plastic rail in particular, we recommend Low Friction / Anti-Wear (PLF) specification.)
Protection of transported items
The friction coefficient is the same as the Low Friction / Wear resistant (LF) specification, and is 15 to 45% lower than Standard Series, reducing line pressure during accumulation and making it less likely to scratch the transported items.

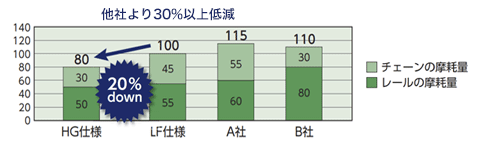

Comparison of friction volume with various specifications
*The graph above shows the results of our in-house testing. The wear volume of the LF specification is set at 100 (standard). Chain type: TTP826, chain speed: 60 m/min, room temperature, dry conditions
Note
- Abrasion-resistant specifications manufactured by Company A, link material: polyester
- B company, etc. B company wear-resistant specifications, link material: polyacetal
Applicable chain type examples
WT1506-K type, TTP826 type, RSP50 type, etc.
-
Note: This product does not comply with the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370).
However, we have confirmed that no substances specified in the equipment and container packaging standard test (synthetic resin) have been leached.
High temperature specification [Specification code: HTW]
Polypropylene chain links
Appearance color: White [HTW]
Purpose
- Chains for warmers and pasta coolers in beverage and food factories
- Battery transport line
- Slightly inclined transport conveyor
Maximum ambient temperature: 105°C
Ideal for warmers and pasta coolers in beverage factories where hot water is present.
Chemical resistance
It has excellent chemical resistance, including acids and alkalis.
high friction
The coefficient of friction is approximately 1.2 to 1.6 times that of Standard Series. It can be used for conveying on slight inclines in dry conditions.
lightweight
It is approximately 40% lighter than polyacetal chains, which is effective in reducing the required power.
Applicable chain type examples
WT1907-K type, WT2506-K type, TTPM500 type, etc.
- Notes: 1. The WT2250FG model with the specification code "HTW" does not comply with the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370).
- Note 2) Maximum allowable load is approximately 40% of Standard Series.
- Note 3) Operating temperature range: 5 to 105°C
High-speed specification: For dry conditions only [Specification code: HS]

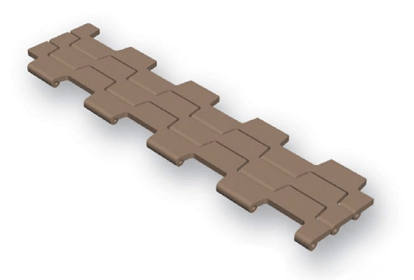

Special engineering plastic used for chain links

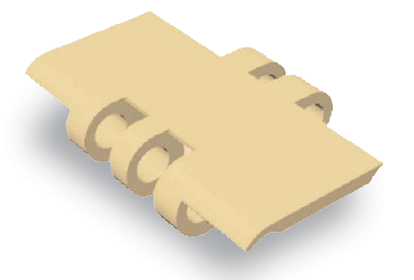

Appearance Color:
Beige [HS]
Purpose
High-speed conveying of cans and empty cans
maximum speed
High limit PV value at 230 m/min (straight line). Prevents melting at high speeds.
Applicable chain type examples
TPU826-T type, TP-OTD32 type, etc.
- Note: This product does not comply with the Food Sanitation Act (Ministry of Health, Labour and Welfare Notification No. 370). However, we have confirmed that no substances specified in the utensil and container packaging standard test (synthetic resin) have leached out.
- Notes: 1. Maximum allowable load is approximately 80% of Standard Series.
- Note) 2. Stainless steel pin type only.
- Note) 3. For dry conditions only.
- Note) 4. When using at high speeds, use stainless steel rails (polished cold-rolled material), and depending on the application, use Plastic rail special polyamide (SJ-CNO).
- Note 5) Operating temperature range: -20 to 50°C
Low temperature specification [Specification code: LTW]
Polyethylene chain links
Appearance color:
White [LTW]
Purpose
- Transporting frozen foods on a freezer conveyor
- Dry ice transportation
Low ambient temperature
Can be used in low temperature environments of -70°C (Standard Series are for temperatures up to -20°C).
Chemical resistance
It exhibits excellent corrosion resistance to chemicals.
The applicable chain types are as follows:
BTN5,BTC6,BTN6,BTC8
- Notes: 1. Maximum allowable load is approximately 33% of Standard Series.
- Note 2: If using at temperatures below -20°C, a special sprocket is required. Please contact us for details.
- Note 3) Operating temperature range: -70 to 60°C
Chemical resistant specification [Specification code: Y]
Special engineering plastic used for chain links
Appearance Color:
Matte White [Y]
Purpose
- Transportation on manufacturing lines for lithium-ion batteries, etc.
- Transferring printed circuit boards and silicon wafers on cleaning lines
- Conveying at the beverage and aseptic filling room exit conveyor
- Transportation on production lines that require chemical cleaning, such as in food factories
Chemical resistance
It is corrosion resistant to many chemicals, including organic solvents, inorganic hydrochloric acids, alkalis, oxidizing agents, and acetic acid.
Shock resistance
Compared to the standard series, the resin is less likely to chip.
Applicable chain type examples
TTP826 type, TPRF2040 type, RSP35 type, etc.
- Notes: 1. Maximum allowable load is approximately 50% of Standard Series.
- Note 2) The friction coefficient is the same as Standard Series.
- Note) 3. Do not use near open flames or in high temperatures.
Super chemical resistance [Specification code: SY]
Special engineering plastic used for chain links
Appearance Color:
Matte White [SY]
Purpose
- Transportation on manufacturing lines for lithium-ion batteries, etc.
- Transferring printed circuit boards and silicon wafers on cleaning lines
- Conveying at the beverage and aseptic filling room exit conveyor
- Transportation on production lines that require chemical cleaning, such as in food factories
Titanium is used for the pin material
Chemical resistance has been further improved by changing the chemical-resistant (Y) pins to titanium (Diamond knurl pins).
Chemical resistance
It exhibits strong corrosion resistance to highly corrosive chemicals such as hydrochloric acid and sulfuric acid.
Applicable chain type examples
TTP826 type, RSP40 type, etc.
- Notes: 1. Maximum allowable load is approximately 50% of Standard Series.
- Note 2) The friction coefficient is the same as Standard Series.
- Note) 3. D-pin type and plastic pin type are not supported.
- Note) 4. Do not use near open flames or in high temperatures.
- Note 5) Operating temperature range: -20 to 80°C
Conductive specification [Specification code: E]
Special engineering plastic used for chain links
Appearance color:
Black [E]
Purpose
- Transporting printed circuit boards after soldering
- Before and after the solar panel lamination process, and transportation to the cutting machine
- Countermeasure against static electricity by accumulating cans
- Measures against static electricity after drying in a washing machine
- Transporting automotive parts (electrical parts)
Excellent conductivity
Volume resistivity: 1X10 6 Ω·cm or less (Standard Series are 1X10 14 to 10 15 Ω·cm)
Static electricity suppression
Suppresses electrical noise and sparks.
Note: Use a steel sprocket rail or similar to ground the entire conveyor.
Applicable chain type examples
WT0705-W type, TTP826P type, RSP35 type, etc.
- Note: This product does not comply with the Food Sanitation Act (Ministry of Health, Labour and Welfare Notification No. 370). However, we have confirmed that no substances specified in the utensil and container packaging standard test (synthetic resin) have leached out.
- Notes: 1. Maximum allowable load is approximately 70% of Standard Series.
- Note 2) The friction coefficient is the same as Standard Series.
Impact-resistant specifications: For dry conditions only [Specification code: DIA]
Special engineering plastic used for chain links
Appearance color:
Cream [DIA]
Purpose
- Transporting slightly heavy machine parts
- Dry conveyor for direct food loading
- Slightly inclined food conveyor
Ultra-shock resistant
Chain is hard to chip when subjected to impact, and even if the chain breaks, debris does not shatter. Suitable for preventing contamination by foreign matters. )
high friction
The coefficient of friction is 1.2 times that of Standard Series. Can be used on slight inclines in dry conditions.
lightweight
It is approximately 20% lighter than polyacetal Top chain, making it easier to handle and effective in reducing the required power.
Impact resistance (resistance to chipping when impacted)
Applicable chain type examples
BTC8H-826-M type, TPUSR550-T type, RSP60-2 type, etc.
-
Note: This product does not comply with the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370).
However, we have confirmed that no substances specified in the equipment and container packaging standard test (synthetic resin) have been leached.
- Notes: 1. Maximum allowable load is approximately 75% of Standard Series.
- Note) 2. For dry conditions only.
Impact-resistant: Suitable for both dry and wet conditions [Specification code: DIY]
Special engineering plastic used for chain links
Appearance color:
Green [DIY]
Purpose
- Food or container transport in wet conditions
- When frequently disinfected and cleaned
- If you are using polyacetal chain and are having trouble with chipping
Shock resistance
Compared to polyacetal resin, it is less likely to chip even when subjected to impact.
Chemical resistance
It has excellent resistance to cleaning and sterilizing chemicals, making it suitable for conveyors that are frequently sterilized and cleaned.
non-stick
This has the effect of preventing transported objects from adhering to the chain.
Impact resistance (resistance to chipping when impacted)
UV resistance
It has better weather resistance than polyacetal resin.
Applicable chain type examples
BTC6 type, TPRF2040 type, RSP60 type, etc.
-
Note: This product does not comply with the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370).
However, we have confirmed that no substances specified in the equipment and container packaging standard test (synthetic resin) have been leached.
- Notes: 1. Maximum allowable load is approximately 75% of Standard Series.
- Note 2) The friction coefficient is the same as Standard Series.
- Note 3. Resin fragments may fly off depending on the atmosphere, such as low temperatures.
- Note) 4. Do not use near open flames or in high temperatures.
抗菌・防カビ仕様[仕様記号:MWS]
Chain links made of antibacterial Low Friction / Anti-Wear polyacetal
Appearance color: Cream [MWS]
Purpose
- Cleaning measures in bottling plants
- Conveyors that are wet due to process moisture or condensation (especially shower equipment entrances and exits, retort equipment unloader areas, etc.)
- Due to the conditions, the conveyor is prone to getting dirty, so mold prevention is required.
Antibacterial and antifungal
Uses original antibacterial agent developed jointly with antibacterial agent manufacturer As well as being effective against the most dangerous bacteria in the food industry, such as colon bacillus(E. coli), staphylococcus and lactobacillus, its anti-mold properties are effective against blue and other forms of mold
持続性
The antibacterial agent used is an inorganic antibacterial agent that maintains its effectiveness over the long term. Because the antibacterial agent is kneaded into the plastic material during manufacturing, it is evenly distributed throughout the link, and its antibacterial and antifungal properties continue even as the surface wears.
safety
Contains a highly safe antibacterial agent. The base material does not comply with the Food Sanitation Act (Ministry of Health, Labour and Welfare Notification No. 370). However, we have confirmed that no substances specified in the utensil and container packaging standard test (synthetic resin) have been eluted. The addition of antibacterial and antifungal properties further improves safety.
高機能
The antibacterial agent has almost no effect on performance, and the rubber exhibits excellent Low Friction / Wear resistant. The link material is made of Low Friction / Anti-Wear (LF) material.
- Notes: 1. Maximum allowable load is the same as Standard Series.
- Note 2) The friction coefficient is the same as Low Friction / Wear resistant (LF) specification.
Antibacterial and antifungal properties
| Condition after 24 hours at 35℃ (Saccharomyces) | |
|---|---|
| LF specification equivalent product | MWS Specifications |
|
|
*Test method
JIS Z2801:2010
- 試験依頼先 株式会社衛生微生物研究センター
- 試験成績書発行年月日 2020年10月12日
- 試験成績書発行番号 2020D-BT-0808
Antibacterial test results (compared to no antibacterial agent)
| Tested bacteria | Test item | Immediately after inoculation | 35℃X24時間後 |
|---|---|---|---|
| E. coli | MWS | 1.5X104 | 38 |
| (No antibacterial agents) | 1.5X104 | 22X106 | |
| Staphylococcus aureus | MWS | 1.6X104 | Not detected |
| (No antibacterial agents) | 1.6X104 | 1.5X105 | |
| Saccharomyces (a type of yeast) |
MWS | 2.5X104 | Not detected |
| (No antibacterial agents) | 2.5X104 | 1.4X104 | |
| Lactobacillus | MWS | 6.4X105 | 1.3X102 |
| (No antibacterial agents) | 6.4X105 | 6.9X104 | |
| Pathogenic E. coli O-157(H7) |
MWS | 1X103.9 | Not detected |
| (No antibacterial agents) | 1X103.9 | 1X103.4 |
Mold growth test results (compared to without antibacterial agent)
| Test mold | Test item | 7 days later | 14 days later | 21 days later |
|---|---|---|---|---|
| Black mold | MWS Specifications | 0 | 0 | 0 |
| (No antibacterial agents) | 0 | 1 | 2 |
試験結果の表示方法
| display | Display contents | |||
|---|---|---|---|---|
| 0 | No mold growth is observed with the naked eye or under a microscope. A zone of inhibition may be observed in some cases. | |||
| 1 | No mold is visible to the naked eye, but can be seen under a microscope. | |||
| 2 | The growth of mycelia is slight, and the area of the growing part does not exceed 25% of the total area. | |||
| 3 | The mycelium growth is moderate, with the area of growth being 25-50% of the total area. | |||
| 4 | The mycelium grows well, and the area of the grown part is 50 to 100% of the total area. | |||
| 5 | The mycelium grows vigorously and covers the entire surface. | |||
*Test method
JIS Z2911-2000 (A method)
- 試験機関 石塚硝子株式会社
- 試験成績書発行年月日 2020年9月25日
Metal detection specifications [Specification code: MPD/MPW]
Special engineering plastic used for chain links
Appearance Color:
Black [MPD/MPW]
Purpose
- Rubber compound conveying
- Conveyor for directly placing food in front of the packaging machine
- Place food such as frozen noodles directly on top
(Specification code: MPW) - Tray transport in a bakery factory
(Specification code: MPD)
Detectable by metal detector
Even if the chain breaks and gets mixed into food or rubber compounds, it can be detected by a metal detector and prevented from leaking.
Shock resistance
Even if an impact is applied, fragments are less likely to fly off.
Applicable chain type examples
TTUP826 type, RSP60-CU-2 type, etc.
-
Note: This product does not comply with the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370).
However, we have confirmed that no substances specified in the equipment and container packaging standard test (synthetic resin) have been leached.
- Note) 1. MPD specifications are for dry conditions only, and MPW specifications are for both dry and wet conditions.
- Note 2) Maximum allowable load for the MPD specification is approximately 80% of that for Standard Series, and Maximum allowable load for the MPW specification is approximately 40% of that for Standard Series.
- Note 3. Operating temperature range: -20 to 80°C (MPD), -20 to 60°C (MPW)

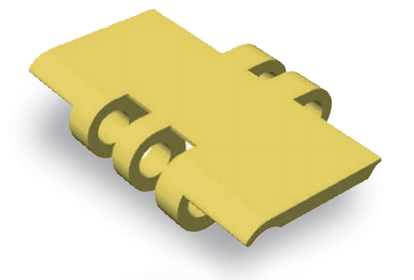

Medium friction specification: For dry conditions only [Specification code: MF]
Special polyacetal used for chain links
Appearance color:
Yellow [MF]
Purpose
- 3 to 5° inclined transport
- Prevents items from slipping excessively on inspection and printing conveyors
*Depends on the item being transported. - Ideal for inclined transport
- A medium-high friction material suitable for inclined transport.
Stable transport
It is suitable for preventing misalignment of conveyed items when the conveyor starts and stops, and for preventing slippage due to acceleration.
Applicable chain type examples
BTC6 type, TTUP826P type, RSP40 type, etc.
- Notes: 1. Maximum allowable load is approximately 75% of Standard Series.
- Note 2) The friction coefficient is 1.1 times that of Standard Series.
- Note) 2. For dry conditions only.
- Note 4: Operating temperature range: -20 to 80°C
Acid-resistant specification [Specification code: AR]
Special polyacetal used for chain links
Appearance Color:
White [AR]
Corrosion resistance
It has better corrosion resistance than Standard Series and Low Friction / Wear resistant (LF) specification.
Corrosion prevention measures
Suitable for preventing corrosion caused by soapy water containing sodium hypochlorite.
Applicable chain type examples
TTP826 type, RSP35 type, etc.
- Note) 1. Since it will be corroded by strong acids and strong alkalis, please use the chemical resistant (Y) or super chemical resistant (SY) specifications.
- Note 2) Maximum allowable load is approximately 90% of Standard Series.
- Note 3) The friction coefficient is the same as Standard Series.
- Note) 4. Plastic pin type is not supported.
- Note: Cannot be used in conditions where it will be exposed to hot water above 560°C.
- Note) 6. Operating temperature range: -20 to (60) 80°C (60) is under wet conditions.
UV resistant [Specification code: UVR]
Special polyacetal used for chain links
Appearance Color:
Light Gray [UVR]
Purpose
- Transporting outdoors where it is exposed to ultraviolet rays
- Countermeasure against UV degradation for longer life than Standard series
UV resistant
Compared to Standard Series and Low Friction / Wear resistant (LF) specifications, this product has superior resistance to UV degradation (discoloration and loss of strength) outdoors.
Applicable chain type examples
TTP826 type, TTPH826P type, RSP50 type, etc.
- Notes: 1. Maximum allowable load and friction coefficient are the same as Standard Series.
- Note) 2. Plastic pin type is also available.
- Note) 3. Operating temperature range: -20 to (60) 80°C (60) is for wet conditions of plastic pin type.
Heat, radiation, and vacuum resistant [Specification code: PK150]
PEEK resin used for chain links and pins
Appearance Color:
Light Brown [PK150]
Purpose
- High temperature environments such as drying furnaces and ovens, and entrance/exit transfer units for ovens
- In an environment where chemicals are used, such as for cleaning and sterilizing the filling room
- Transport in a vacuum environment
Maximum ambient temperature: 150°C
Chemical resistance
It exhibits excellent corrosion resistance to chemicals.
Radiation resistance
It has the highest radiation resistance of any thermoplastic resin.
Low gas emission in vacuum
Made with materials approved by the FDA (U.S. Food and Drug Administration)
Applicable chain type
WT0405-W
- Note) Operating temperature range: -20 to 150°C
Low temperature and chemical resistant specifications [Specification code: UPE]
Ultra-high molecular weight polyethylene is used for the chain links
Appearance Color:
Matte White [UPE]
Purpose
- Frozen food storage warehouse transportation
- Transporting frozen foods on a freezer conveyor
- Conveying food that requires chemical cleaning or contamination prevention measures
- Transporting secondary batteries and other items that require chemical resistance
- In an environment where chemicals are used, such as for cleaning and sterilizing the filling room
Low ambient temperature
Can be used in low ambient temperatures of -70°C (Standard Series are up to -20°C)
Shock resistance
It has extremely high impact resistance and is difficult for foreign matter to get mixed in even when used in a low temperature environment.
Compared to polyacetal resin, it has 13 times the impact resistance when used in a room temperature atmosphere and 26 times the impact resistance when used in a low temperature atmosphere.
Abrasion resistance
Wear when used in a room temperature environment is reduced by approximately 80% compared to polyacetal resin.
Chemical resistance
It exhibits excellent corrosion resistance to chemicals.
Made with materials approved by the FDA (U.S. Food and Drug Administration)
Applicable chain type
RSP80
- Notes: 1. Maximum allowable load is approximately 30% of Standard Series.
- Note 2) Operating temperature range: -70 to 60°C
- Note 3: If using at temperatures below -20°C, a special sprocket is required. Please contact us for details.
- Note 4: Stainless steel (cold rolled material) is recommended for wearstrip material. UHMW-PE (ultra-high molecular weight polyethylene) is not recommended as it is made of the same material.
